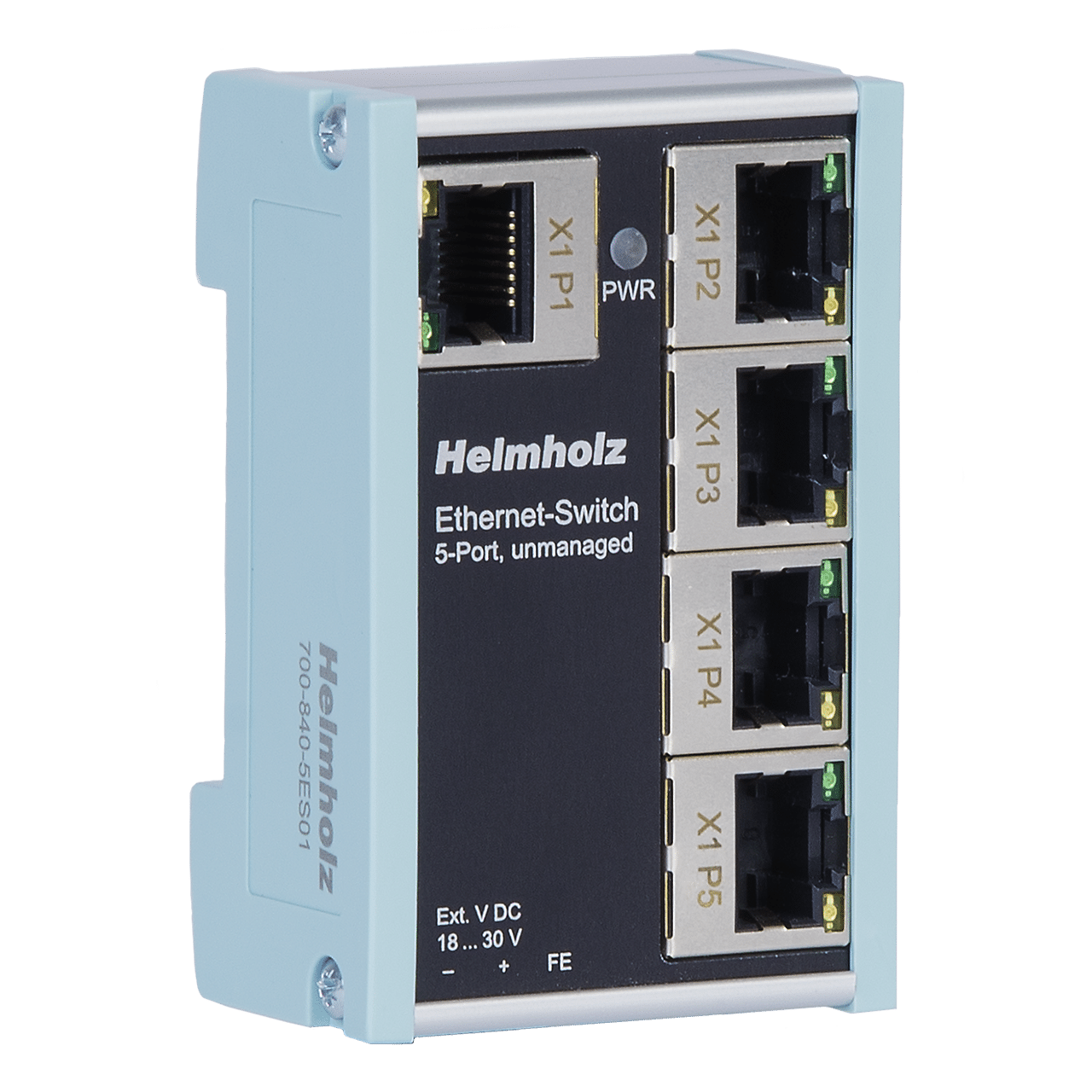

Helmholz 700-840-5ES01 FLEXtra FLAT Ethernet-Switch, unmanaged 5x RJ45 100 Mbit
87.58€ HT
With its very compact design the unmanaged Ethernet-Switch can be used for a wide range of industrial applications and convinces with its light but robust design.
Disponible sur commande
General information
- Order number700-840-5ES01
- Article nameFLEXtra FLAT Ethernet-Switch, unmanaged, 5-port, 100 Mbit
- Scope of deliveryEthernet 5-port switch with power supply plug, short manual
- Dimensions (DxWxH)32.5 x 48.5 x 80.5 mm
- WeightApprox. 110g
LAN interface
- Number5
- ConnetionRJ45
- Transmission rate10/100 Mbit/s
- Type10Base-T/100Base-TX
- Full-/Half-Duplex (Autonegotiation)
- Auto MDI/MDI-X
- IEEE Autocrossover
- PROFINET Conformance Class A
Status indicator
- Power display1 LED
- Ethernet-Status10 LEDs
Power supply
- Voltage supply24 V DC (18…30 V DC)
- Current drawmax. 60 mA at 24 V DC
- Power dissipation1,5 W
Ambient conditions
- Ambient temperature-25 °C … +75 °C
- Transport and storage temperature-40 °C … +85 °C
- Relative air humidity95 % r H without condensation
- Protection ratingIP20
- Mounting positionas desired
- AppovalsCE, UL
UL
- ULUL 61010-1/ UL 61010-2-201
- Pollution degree2
- Voltage supplyDC 24 V (18 … 30 VDC, SELV and limited energy circuit)
- AltitudeUp to 2000 m
- Temperature cable rating87 °C
