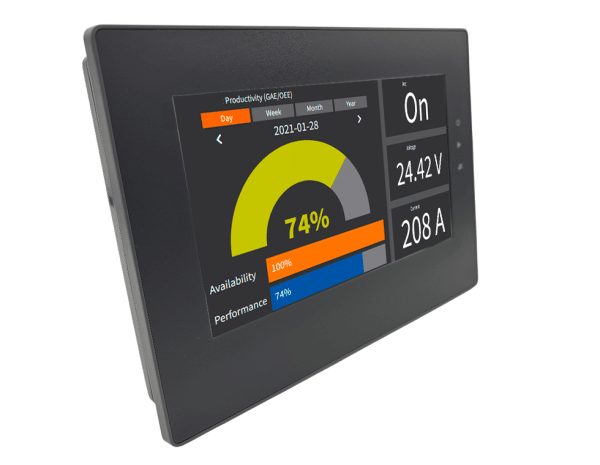

HMI-070U3SE
HMI Touch Panel 7.0″ 16:9
TFT Display 1024×600 px
16.77 M Colors
1×Ethernet
1×RS232 + 2×RS485
2×USB

888 888€ ex-VAT

✦ Unbranded front, neutral style
Size: 203×145×35 mm
Cut-out: 192×138 mm
Display size: 7.0" (16:9) TFT 154×89 mm
Resolution: 1024×600 px
Brightness: 450 cd/m²
Weight: 700 gr
Power: 12-28 VDC 4 W
Ethernet port
WiFi optional
LTE-Cat1bis optional
Serial ports: COM1:RS232 COM2:RS485 COM3:RS485 Modbus, ASCII & more…
USB-A host port: Master Modbus to ACE PLC or Export Data (USB Key)

In stock

SKU: HMI-070U3SE Category:

Working environment temperature: -20°C~55°C (no freezing)

Working environment humidity: 5~95% (non-condensing)

Shock resistance: 10~25Hz (XYZ direction 2G/30 minutes)

Shell material: Engineering plastic ABS+PC

Power supply voltage: (DC12~24V)±15%

Static level: ±6kV

Contrast: 400:1

Touch panel: 4-wire high precision touch panel

Display colors: 16.77 million

Backlight Module: LED

Storage: 128MB DDR3

CPU: Cortex A7 1GHz, Dual Core

RAM: 128MB FLASH

FCC Compatibility: Complies with FCC, Class A

Withstand voltage test: 1000V AC, 1 minute

CE certification: Complies with EN55032 and EN55035 standards

Protection class: IP65 (front panel)

Configuration Software: CommandHMI
