HMI-156U3SE
HMI Touch Panel 15.6″ 16:9
TFT Display 1920×1080 px
16.77 M Colors
1×Ethernet
1×RS232 + 2×RS485
2×USB
Optional WiFi or LTE-Cat1bis

490€ ex-VAT

✦ Unbranded front, neutral style
Size: 395×257×31 mm
Cut-out: 383×246 mm
Display size: 15.6" (16:9) TFT 345×194 mm
Resolution: 1920×1080 px
Brightness: 300 cd/m²
Weight: 2450 gr
Power: 22-28 VDC 7 W

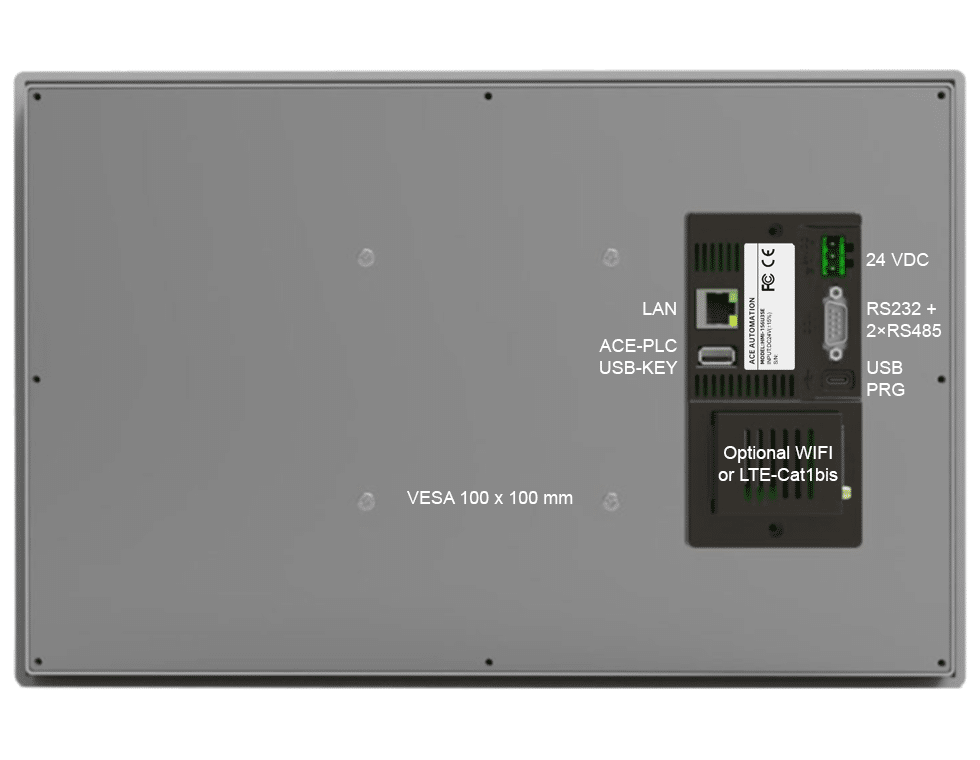

Ethernet port
WiFi optional
LTE-Cat1bis optional
Serial ports: COM1:RS232 COM2:RS485 COM3:RS485 Modbus, ASCII & more…
USB-A host port: Master Modbus to ACE PLC or Export Data (USB Key)

In stock

SKU: HMI-156U3SE Category:

Working environment temperature: -20°C~55°C (no freezing)

Working environment humidity: 5~95% (non-condensing)

Shock resistance: 10~25Hz (XYZ direction 2G/30 minutes)

Shell material: Engineering plastic ABS+PC

Power supply voltage: DC12~24V ±15% for 3.5" to 7.0" | DC22~24V ±15% for 10.2" & 15.6"

Static level: ±6kV

Contrast: 400:1

Touch panel: 4-wire high precision touch panel

Display colors: 16.77 million

Backlight Module: LED

Storage: 128MB DDR3

CPU: Cortex A7 1GHz, Dual Core

RAM: 128MB FLASH

FCC Compatibility: Complies with FCC, Class A

Withstand voltage test: 1000V AC, 1 minute

CE certification: Complies with EN55032 and EN55035 standards

Protection class: IP65 (front panel)

Configuration Software: CommandHMI
