IoT Industrial Gateway

Controllo e monitoraggio industriale resi semplici

Connectivity

  • Modulo LTE M1 4G Quectel integrato

  • Wi-Fi 802.11 a/b/g/n

  • GPS/GNSS

  • LAN + WAN RJ45

Industrial Protocoles

  • Client Modbus TCP

  • Master Modbus RTU su RS485 o USB

  • MQTT Client con TLS

ace gtw 4g m1 mqtt modbus gateway on din rail angle view h400

85€ ex-VAT



🇫🇷 Firmware sviluppato in Francia

✓ Oltre 6.000 gateway distribuiti in Europa
✓ Personalizzabile su richiesta
✓ Supporto ingegneristico diretto
✓ Consegna e implementazione rapide

Smart Gateway Features

Gestione intelligente dei dati e flessibilità dei protocolli

Smart Data Management

  • Prefisso e suffisso globale per entrambi PUB e SUB Topics

  • Filtraggio Deadband per ridurre il traffico inutile

  • Frequenze di polling adattive

  • Scambio automatico di byte/word

  • Abilita/Disabilita per Topic

  • Topics integrati per GPS/GNSS, stato del dispositivo e metriche LTE/4G

Protocol Flexibility

  • Modbus TCP e RTU contemporaneamente

  • Molteplici codici funzione Modbus

  • Supporta formati UInt8, UInt16, Int16, Int32, Float, String

MQTT Integration

  • Payload MQTT completamente personalizzabili

  • Payload preconfigurati per LTE/GPS/Stato dispositivo

modbus mqtt gateway lte 4g

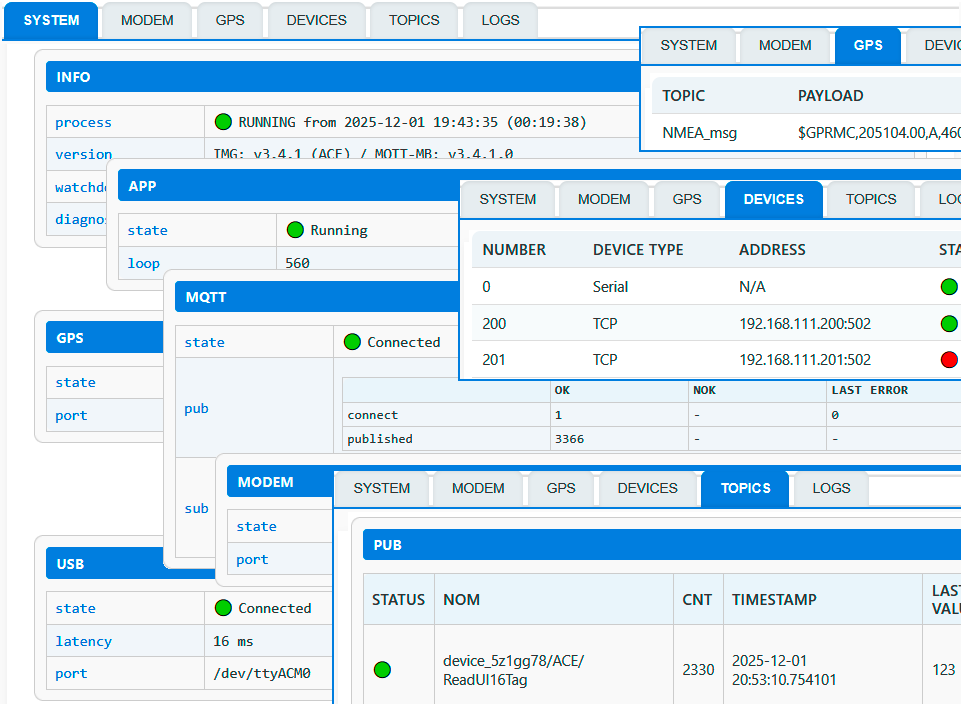

System Monitoring & Diagnostics

Visibilità in tempo reale di tutti i componenti del gateway

all settings mqtt modbus gateway

85€ ex-VAT . Disponibile . Spedizione entro 48h

Ordina ora

Configurazione ricca di funzionalità

MQTTS con TLS, parametri Modbus, payload configurabili, aggiornamenti remoti, file di configurazione XML,..

Perché MQTT Modbus Gateway?

Connetti, monitora e controlla i tuoi macchinari industriali da remoto

Prova questo kit! Disponibile. Spedizione entro 48 ore.

Ordina ora

Specifiche tecniche

  • 1 Ethernet LAN + 1 Ethernet WAN ports Auto MDI/MDIX PPPoE, Dynamic IP, DHCP Client/Server/Static IP, IPv4/v6
  • 1 USB Host 2.0 High-Speed Interface port to ACE PLC or RS485 converter (USB-RS485-WE)
  • 3 SMB connectors WiFi, LTE Cat M1, GPS/GNSS
  • 1 SIM card slot
  • 19-26 VDC 12 W power supply port compatible vehicle power supply
  • Provide with power cable with locking connector
  • Consumption:
    • ACE-GTW-4G with MQTT and 4G ≃ 1.45 W
    • ACE-GTW-4G with MQTT and 4G + ACE PLC ≃ 1.80 W
    • ACE-GTW-4G with MQTT and 4G + USB-RS485 converter ≃ 1.70 W
  • Worldwide Multi-band LPWA (Low Power Wide Area) module
  • High quality and widely known Quectel internal modem
  • Multi-constellation GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
  • IoT/M2M-optimized global coverage with LTE Cat M1/Cat NB2/EGPRS and low power consumption
    • Cat M1/Cat NB1: LTE HD-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25①/B26*/B28
    • EGPRS: 850/900/1800/1900 MHz
  • Firewall Protection
  • VPN Support
  • Intrusion Detection/Prevention (IDS/IPS)
  • Client Filtering and MAC Address Filtering
  • Wi-Fi Security
  • SSH and Secure Remote Access
  • DNS Security
  • Denial of Service (DoS) Protection
  • TLS/SSL Encryption for Web Interface
  • User Authentication and Access Control
  • Automatic Updates and Patch Management
  • Firmware Integrity and Secure Boot
  • Network Segmentation
  • Logging and Monitoring
  • NAT and Port Forwarding Security
  • Backup and Restore Security Configurations
  • Firewall Security. NTP.
  • Security: Client Filter, Mac address filtering, URL Filter
  • Anti-interference design
  • CE, FCC, RoHS compliant


  • Dimensions: 140 mm x 100 mm x 26 mm
  • Operating temperature range: -20℃ to +70℃
  • Metal case
  • Provide with power cable with locking connector
  • Included L Bracket
  • Optionnal DIN-Rail + Wall Mounting Kit
  • MQTT – Broker Settings
    • IP, Port, TLS, Login, Password, Force Client ID, QoS, Advanced parameters, Log, etc…
  • Modbus – Master Settings
    • Serial Modbus parameters, Modbus Serial Device, Modbus-TCP/IP Devices, IP, Port
  • General Settings
    • Project name, Common tag prefix/suffix for PUBs and SUBs
  • Topics To Publish/Subscribe
    • Enable/Disable, Topic name, Payload, Modbus Pooling, Device ID, Slave ID, Modbus FC (01,02,03,04,05,06,0F,10,JSON), Modbus Address, Format (UI8, UI/I16, I32, Float, String), Data Swap, DeadBand, etc…
  • System payloads
    • Modbus, SYS, GPS, LTE/4G, etc..
  • System Functions
    • Certificate Update
    • MQTT Config Update
    • Firmware Update
    • ACE PLC Program Update
    • GTW Parameter Update
    • ACE FTP Upload
    • ACE Diag Request

  • ACE-GTW-4G to ACE PLC USB cable (Mini-USB cable)

  • GPS/GNSS+LTE/4G SMB dual antenna IP65 vandal-proof

  • 4G/LTE SMB whip antenna

  • WiFi SMB antenna IP65 vandal-proof

  • USB to RS485 Serial Converter (For Modbus on RS485) (USB-RS485-WE)

  • DIN Rail + Wall Mounting Kit
