ace gtw mini lte cat1 bis + wifi mqtt to modbus tcp client or/and modbus rtu master gateway

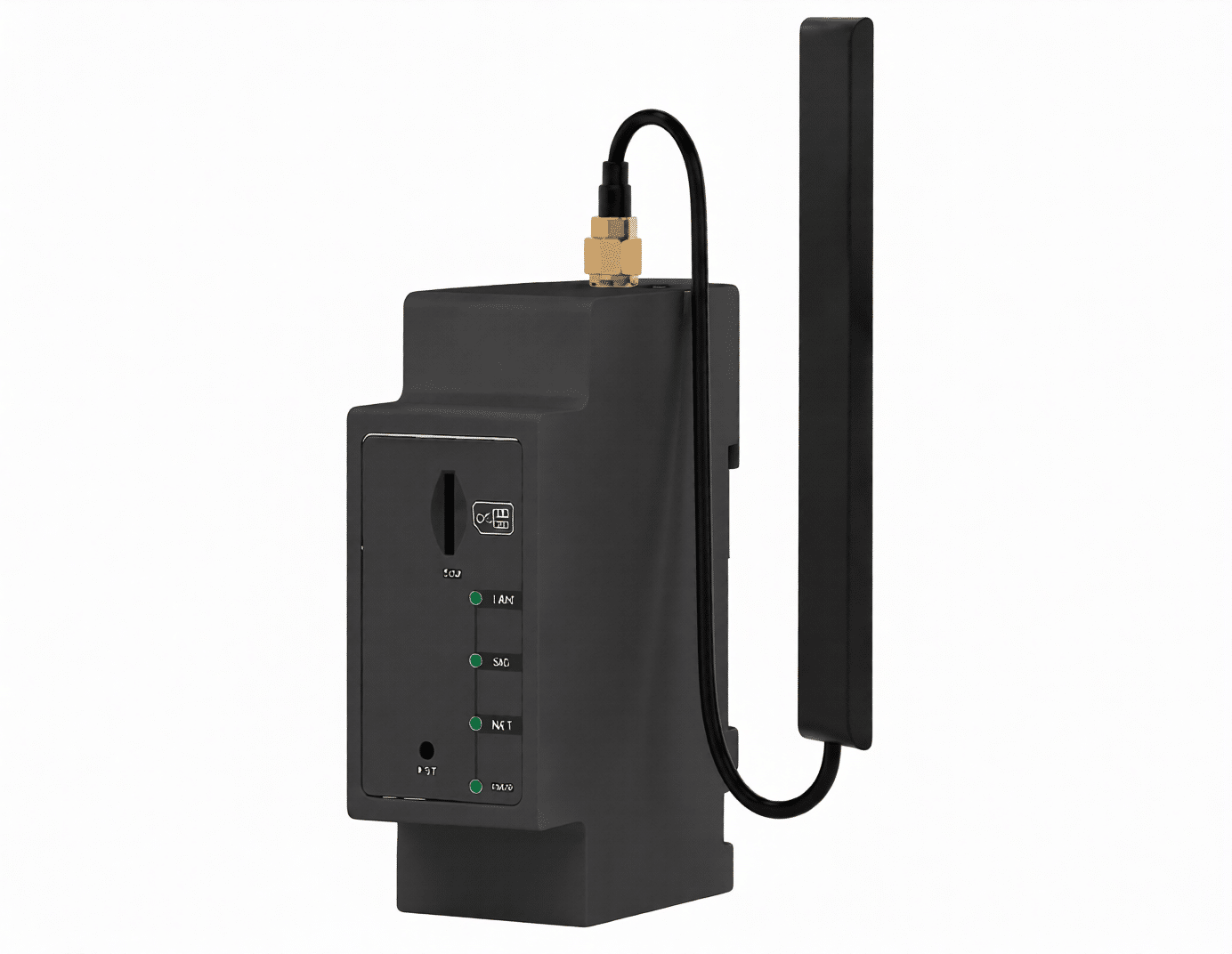

ACE-GTW-MINI
LTE Cat1 BIS + WIFI
MQTT to Modbus TCP Client or/and Modbus RTU Master Gateway

69€ ex-VAT



Adds MQTT and GPS/GNSS functions via LTE Cat1 BIS/WIFI/LAN to:

  • ACE PLC with a RS232 or RS485 port, Modbus RTU
  • Any RS232 or RS485 Modbus-RTU Slave devices
  • Any Ethernet/RJ45/WiFi Modbus-TCP Server devices

Your Modbus register (ACE PLC / Your device) become accessible from MQTT
IoT/M2M-optimized global coverage with LTE/4G Cat1 BIS
WiFi IEEE 802.11b/g/n, Access Point (AP), Station (STA)
1 LTE/4G SMB connector
1 RJ45 LAN port
1 WiFi (internal antenna)
1 RS232 or RS485 port (software switchable)
Network configuration via embedded web pages
Firmware developed in France
Customizable on request

SKU: ACE-GTW-MINI Category:
  • 1 Ethernet LAN 10/100 Mbps port Auto MDI/MDIX PPPoE, Dynamic IP, DHCP Client/Server/Static IP, IPv4/v6
  • 1 SMB connectors LTE Cat1 BIS
  • 1 WiFi internal antenna
  • 1 Nano SIM card slot
  • LEDs: Power + Network + Signal + LAN
  • Reset button: Reboot/Factory reset
  • 9-35 VDC <3 W power supply port pluggable
  • Provide with LTE Antenna
  • Worldwide Multi-band LPWA (Low Power Wide Area) module
  • High quality and widely known Quectel internal modem
  • IoT/M2M-optimized global coverage with LTE Cat1 BIS
    • EU (Europe/New Zealand/Australia) LTE-FDD: B1/3/5/7/8/20/28
  • LTE data rates: 10 Mbps (DL) / 5 Mbps (UL)
  • Firewall Protection
  • VPN Support
  • Intrusion Detection/Prevention (IDS/IPS)
  • Client Filtering and MAC Address Filtering
  • Wi-Fi Security
  • SSH and Secure Remote Access
  • DNS Security
  • Denial of Service (DoS) Protection
  • TLS/SSL Encryption for Web Interface
  • User Authentication and Access Control
  • Automatic Updates and Patch Management
  • Firmware Integrity and Secure Boot
  • Network Segmentation
  • Logging and Monitoring
  • NAT and Port Forwarding Security
  • Backup and Restore Security Configurations
  • Firewall Security. NTP.
  • Security: Client Filter, Mac address filtering, URL Filter
  • Anti-interference design
  • CE, FCC, RoHS compliant
  • Dimensions: 88 mm x 66 mm x 30 mm
  • Operating temperature range: -40℃ to +85℃
  • ABS plastic housing with DIN rail mounting
  • Provide with SMB whip LTE antenna
  • MQTT – Broker Settings
    • IP, Port, TLS, Login, Password, Force Client ID, QoS, Advanced parameters, Log, etc…
  • Modbus – Master Settings
    • Serial Modbus parameters, Modbus Serial Device, Modbus-TCP/IP Devices, IP, Port
  • General Settings
    • Project name, Common tag prefix/suffix for PUBs and SUBs
  • Topics To Publish/Subscribe
    • Enable/Disable, Topic name, Payload, Modbus Pooling, Device ID, Slave ID, Modbus FC (01,02,03,04,05,06,0F,10,JSON), Modbus Address, Format (UI8, UI/I16, I32, Float, String), Data Swap, DeadBand, etc…
  • System payloads
    • Modbus, SYS, LTE, etc..
  • System Functions
    • Certificate Update
    • MQTT Config Update
    • Firmware Update
    • ACE PLC Program Update
    • GTW Parameter Update
    • ACE FTP Upload
    • ACE Diag Request
  • Standards Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0 FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
  • ESD EN61000-4-2:2009
  • RS EN 61000-4-3:2006 + A1:2008 + A2:2010
  • EFT EN 61000-4-4:2012
  • Surge immunity (AC Power Line) EN 61000-4-5:2006
  • Surge immunity (Ethernet ports) EN 61000-4-5:2014, clause 7.1 of ITU-T K21
  • CS EN 61000-4-6:2009
  • DIP EN 61000-4-11:2004
