Starter Kits

There are many ways to discover our solutions or to learn how to program a PLC and HMI.
ACE AUTOMATION offers you these 4 Starter Kits for a first turnkey approach.

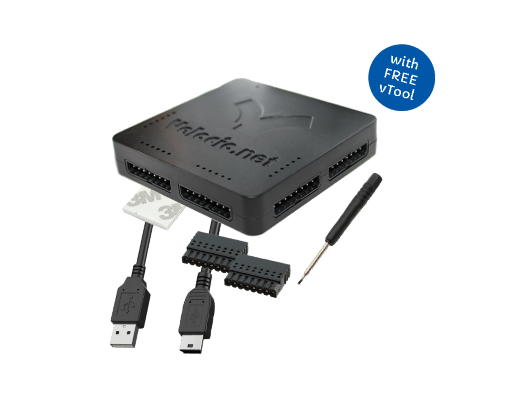

6 DI + 6 DO
PLC

64 €

ACE 11 PLC
6 DI / 6 DO
+ Connector tool
+ Plug connectors
+ Double side adhesive
+ USB Programming cable
+ vBuilder Software
.
.
.
.
.

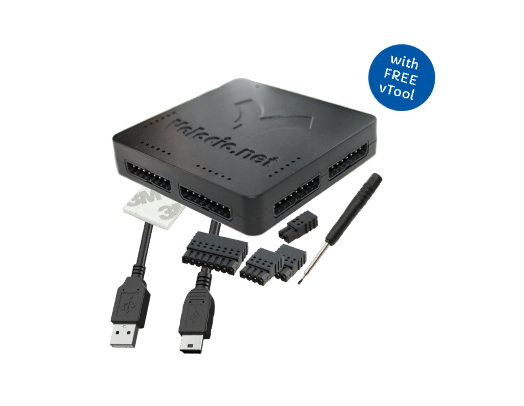

3 DI + 3 DO + 3 AI
PLC

94 €

ACE 1630v10 PLC
3 DI / 3 DO / 3 AI (0-10V)
+ Connector tool
+ Plug connectors
+ Double side adhesive
+ USB Programming cable
+ vBuilder Software.
.
.
.
.
.

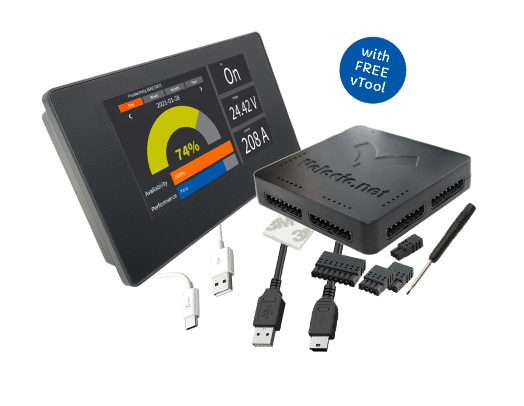

6 DI + 6 DO PLC
+ 4.3″ HMI

119 €

ACE 11 PLC
6 DI / 6 DO
+ Connector tool
+ Plug connectors
+ Double side adhesive
+ USB Programming cable
+ vBuilder Software
+
4.3″ HMI
+ USB HMI cable
+ HMI-Tool Software
.

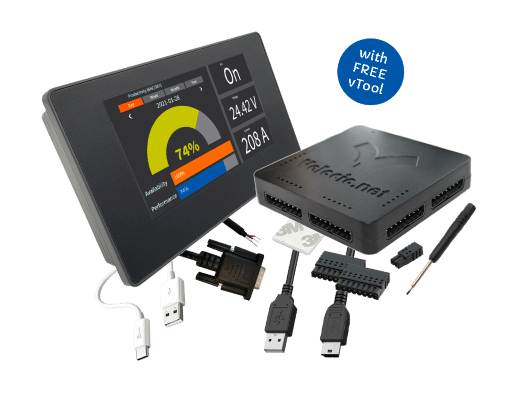

3 DI + 3 DO + 3 AI PLC
+ 4.3″ HMI

159 €

starter kit ace1630v10 new hmi 4 524x406

ACE 1630v10 PLC
3 DI / 3 DO / 3 AI (0-10V)
+ Connector tool
+ Plug connectors
+ Double side adhesive
+ USB Programming cable
+ vBuilder Software
+
4.3″ HMI
+ USB HMI cable
+ RS232 HMI-ACE cable
+ HMI-Tool Software

SK-1630H4

And its favourite options…


VMOUNT	vMOUNT DIN Rail Mount	Attach your PLC to a 35mm Din rail or with screws or bolts 4 orientations (0°, 90°, 180°, 270°)	5 €
SIMULSTICK	SIMULSTICK 6 Inputs simulator	Lets you simulate 6 digital inputs Use with any standard ACE It’s useful for testing and debugging	29 €	For SK-11 or SK-11H4

Industrial ACE Micro PLCs

Mini-USB programming port compatible with Modbus RTU
Digital Inputs/Outputs from 5 to 24 VDC
Power supply from 5 to 24 VDC (or via the Mini-USB port, except for ACE-7096)
Includes high-quality connectors with Push-In connection
+ ultra-strong double-sided adhesive

Depending on the ACE version:

RS232 or RS232/RS485 port compatible with Modbus RTU
Analog inputs 0-5 V, 0-10 V or 0-20 mA
Analog outputs 0-5 V or 0-10 V configurable via vBuilder

ACE PLCs	Digital or Counter Inputs 3-30V 3@250kHz	Digital or PWM Outputs 3‑30V 3@250kHz	Analog Inputs 0-5V 12b/4096p	Analog Inputs 0-10V 12b/4096p	Analog Inputs 0-20mA 12b/4096p	ThermoC or ± 2V Inputs 16b/65536p	Analog Outputs 0-5V/10V 16bits 65536p	Serial Port Modbus or ASCII	Price € ex VAT
ACE_11	6	6	-	-	-	-	-	-	59
ACE_22	12	12	-	-	-	-	-	-	109
ACE_1630v10	3	3	-	3	-	-	-	1*RS232	89
ACE_1630c	3	3	-	-	3	-	-	1*RS232	89
ACE_1630v5	3	3	3	-	-	-	-	1*RS232	89
ACE_1600	3	6	-	-	-	-	-	1*RS232	75
ACE_1800	18	18	-	-	-	-	-	-	155
ACE_1700	12	24	-	-	-	-	-	-	155
ACE_1430	6	12	-	-	-	-	-	1*RS232/485	115
ACE_1802	18	14	-	-	-	-	-	1*RS232	165
ACE_1801	14	18	-	-	-	-	-	1*RS232	165
ACE_1701	8	24	-	-	-	-	-	1*RS232	165
ACE_1450	6	12	-	-	-	2	-	1*RS232/485	145
ACE_5150v5	12	12	3	-	-	-	-	1*RS232	165
ACE_5150v10	12	12	-	3	-	-	-	1*RS232	165
ACE_5150c	12	12	-	-	3	-	-	1*RS232	165
ACE_5190v5	12	12	9	-	-	-	-	1*RS232	199
ACE_5190v10	12	12	-	9	-	-	-	1*RS232	199
ACE_5190c	12	12	-	-	9	-	-	1*RS232	199
ACE_222v5	12	12	12	-	-	-	-	-	179
ACE_222v10	12	12	-	12	-	-	-	-	179
ACE_222c	12	12	-	-	12	-	-	-	179
ACE_3090v5	6	18	3	-	-	4	-	1*RS232	215
ACE_3090v10	6	18	-	3	-	4	-	1*RS232	215
ACE_3090c	6	18	-	-	3	4	-	1*RS232	215
ACE_7096v5	6	12	4	-	-	4	2	2*RS232	279
ACE_7096v10	6	12	-	4	-	4	2	2*RS232	279
ACE_7096c	6	12	-	-	4	4	2	2*RS232	279

Need more Inputs/Outputs ?

Accessories


Accessories					Add To Cart
VPROG	Mini-USB programming cable ACE/eACE PC vBuilder	Be careful, this isn’t a Micro-USB The Ace can be powered by its Mini USB port (Except ACE with Analog Outputs)	1800	5
USBISO	USB to USB Isolator	Between PC and ACE PLC / HMI Protect your ACE, HMI and PC in a harsh industrial environment during transfer and debugging	65 x 24 x 15	14
VTOOL	Micro Screwdriver 1 mm for ACE PLC connectors	Spring-cage connectors are easy to use Rigid wires are first stripped Then inserted directly without tool They can be released using a small 1 mm flat screwdriver!	85 x 1	3
VMOUNT	DIN Rail Mount	Attach your PLC to a 35mm Din rail or with screws or bolts 4 orientations (0°, 90°, 180°, 270°)	63.5 x 63.5 x 9	5
SIMSTICK	Inputs Simulator Stick For ACE PLCs	Lets you simulate 6 digital inputs Use with any standard Ace It’s useful for testing and debugging	60 x 20 x 20	29

Optional pre-wiring interfaces for ACE PLCs

All terminal blocks are supplied with :

Pre-wired cable, wire terminal boards to Ace IO ports. Length 450 mm.
Built in mount for 35mm DIN Rail or Screws or Bolts.
Built in LEDs indicating IO status.


Terminal Boards				Excl.VAT	Add To Cart
TB06-35	6 Inputs or Outputs	Screw termination No electronic components DIN-Rail Mounting	63.5 x 63.5 x 12.7 Wire size up to 1.5 mm²	15
TB06CLV-35	6 Low Voltage Inputs	6 x 10-60 VAC/VDC Inputs DIN-Rail Mounting	63.5 x 63.5 x 12.7 Wire size up to 1.5 mm²	25
TB06CHV-35	6 High Voltage Inputs	6 x 60-300 VAC Inputs DIN-Rail Mounting	63.5 x 63.5 x 12.7 Wire size up to 1.5 mm²	25
TBR06_ISO-35	6 Isolated Relay Outputs	6 x Dry Contact Outputs (with no Common) 250 VAC - 30 VDC 5 A / Channel DIN-Rail Mounting	63.5 x 63.5 x 12.7 Wire size up to 1.5 mm²	29
TBR06C-35	2 x 3 Relay Outputs	2 x 3 Dry Contact Outputs (with 2 Common) 250 VAC - 30 VDC 5 A / Channel & 10 A / Common DIN-Rail Mounting	63.5 x 63.5 x 12.7 Wire size up to 1.5 mm²	25
TBTN06-35L	6 Isolated NPN Outputs	6 x Isolated NPN Outputs 2 A / Channel & 10 A / Module DIN-Rail Mounting	63.5 x 63.5 x 12.7 Wire size up to 1.5 mm²	25
TBTN06-35H	6 Isolated PNP Outputs	6 x Isolated PNP Outputs 2 A / Channel & 10 A / Module DIN-Rail Mounting	63.5 x 63.5 x 12.7 Wire size up to 1.5 mm²	25

Industrial eACE Micro PLCs for PCB

All Standard eACE PLCs are supplied with:

All the sockets you’ll need

All eACE PLCs have a Modbus compatible USB programming port

eACE PLCs for PCB	Digital Inputs 3-30V 3@250kHz	Digital Outputs 3‑30V 3@250kHz	Analog Inputs 0-5V 12bits 4096p	Analog Inputs 0-10V 12bits 4096p	Analog Inputs 0-20mA 12bits 4096p	ThermoC & Diff Inputs 16bits 65536p	Analog Outputs 0-5V/10V 16bits 65536p	RS232 Modbus & ASCII	RS232 or RS485 Modbus & ASCII	Price € ex VAT	____________
eACE PLCs for integration on PCB - For standard ACE PLCs see above ^^
eACE_11	6	6	-	-	-	-	-	-	-	59
eACE_22	12	12	-	-	-	-	-	-	-	109
eACE_1600	3	6	-	-	-	-	-	1	-	75
eACE_1630v10	3	3	-	3	-	-	-	1	-	89
eACE_1630c	3	3	-	-	3	-	-	1	-	89
eACE_1630v5	3	3	3	-	-	-	-	1	-	89
eACE_1800	18	18	-	-	-	-	-	-	-	155
eACE_1700	12	24	-	-	-	-	-	-	-	155
eACE_1430	6	12	-	-	-	-	-	-	1	115
eACE_1802	18	14	-	-	-	-	-	1	-	165
eACE_1801	14	18	-	-	-	-	-	1	-	165
eACE_1701	8	24	-	-	-	-	-	1	-	165	contact us
eACE_1450	6	12	-	-	-	2	-	-	1	145
eACE_5150v5	12	12	3	-	-	-	-	1	-	165
eACE_5150v10	12	12	-	3	-	-	-	1	-	165
eACE_5150c	12	12	-	-	3	-	-	1	-	165
eACE_222v5	12	12	12	-	-	-	-	-	-	179
eACE_222v10	12	12	-	12	-	-	-	-	-	179
eACE_222c	12	12	-	-	12	-	-	-	-	179
eACE_3090v5	6	18	3	-	-	4	-	1	-	215
eACE_3090v10	6	18	-	3	-	4	-	1	-	215
eACE_3090c	6	18	-	-	3	4	-	1	-	215
eACE_7096v5	6	12	4	-	-	4	2	2	-	279	contact us
eACE_7096v10	6	12	-	4	-	4	2	2	-	279
eACE_7096c	6	12	-	-	4	4	2	2	-	279	contact us

Accessories


Accessories				Excl.VAT	Add To Cart
VPROG	Mini-USB programming cable ACE/eACE PC vBuilder	Be careful, this isn’t a Micro-USB The Ace can be powered by its Mini USB port (Except ACE with Analog Outputs)	1800	5
USBISO	USB to USB Isolator	Between PC and ACE PLC / HMI Protect your ACE, HMI and PC in a harsh industrial environment	65 x 24 x 15	14
ESIM	Simulator For eACE 11, 22, 222 PLCs	Simulation of application IO Development tool Training tool Debug tool	140 x 140	179

Command-HMI for ACE & eACE PLCs, and the others…

✦ Unbranded front, neutral style

Used by many machine manufacturers.
Excellent value without compromising quality. Powerful Processor.
Free HMI software, designed to be the easiest to use.
Supplied with HMI mounting brackets kit for installation on a front plate
Compatible with all ACE/eACE PLCs via a Modbus USB, RS232 or RS485 port,
as well as with a wide range of other PLC brands

The 3.5-inch HMI does not have a Modbus Host USB port for exporting historical data or for connecting ACE/eACE PLCs via their USB port
If the HMI interface is connected to the USB port of the ACE/eACE PLCs, vBuilder’s debug mode cannot be used at the same time

hmi 102u3se human machine interface touch panel for plc usb front ethernet 4g wifi rs485 sk102qsg product no backgnd


CommandHMI						Excl.VAT	Add To Cart
HM-035UE	3.5" / 89 mm 4/3 320 x 240 px 71.1 x 53.3 mm	1 x RS232/485 1 x USB-B Slave	Modbus over RS232/485 + A wide range of PLC protocols	Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	96 x 81 x 47 ✂ 92 x 77	95
HM-043AE	4.3" / 109 mm 16/9 480 x 272 px 95.02 x 53.84 mm	1 x RS232/485 1 x USB-A Host Modbus 1 x USB-B Slave	Modbus over USB & RS232/485 + A wide range of PLC protocols	Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	139 x 86 x 31 ✂ 132 × 80	95
HMI-043U2S [new]	Touchscreen 4.3" / 109 mm 16/9 480 x 272 px 95.02 x 53.84 mm	1 x RS232 + 1 x RS485 1 x USB-A Host Modbus 1 x USB-C Slave	Modbus over USB & RS232/485 + A wide range of PLC protocols	✦Unbranded front Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	139 x 86 x 31 ✂ 132 x 80	55
HMI-043U1SE [new]	Touch Screen 4.3" / 109 mm 16/9 480 x 272 px 95.02 x 53.84 mm	1 x Ethernet + 1 x RS485 1 x USB-A Host Modbus 1 x USB-C Slave	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols	✦Unbranded front Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	139 x 86 x 31 ✂ 132 x 80	69
HM-050BS	5.0" / 127 mm 16/9 800 x 480 px 108.90 x 65.34 mm	1 x Ethernet 1 x RS232/485 1 x USB-A Host Modbus 1 x USB-B Slave	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols	Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	165 x 103 x 39 ✂ 157 x 95	135
HM-070BE	7.0" / 185 mm 16/9 800 x 480 px 152.46 x 91.47 mm	2 x RS232/485 1 x USB-A Host Modbus 1 x USB-B Slave	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols	Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	202 x 144 x 40 ✂ 192 x 138	125
HM-070MW	7.0" / 185 mm 16/9 800 x 480 px 152.46 x 91.47 mm	1 x WiFi 1 x Ethernet RJ45 2 x RS232/485 1 x USB-A Host Modbus 1 x USB-B Slave	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols	Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	202 x 144 x 40 ✂ 192 x 138	175
HMI-070U3SE [new]	Touch Screen 7.0" / 185 mm 16/9 800 x 480 px 152.46 x 91.47 mm	1 x Ethernet + 1 x RS232 + 2 x RS485 1 x USB-A Host Modbus 1 x USB-C Slave Optional WiFi	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols VNC Server	✦Unbranded front Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	203 x 145 x 35 ✂ 192 x 138	95
HM-102BW	10.2" / 259 mm 16/9 1024 x 600 px 223.53 x 130.97 mm	1 x WiFi 1 x Ethernet RJ45 2 x RS232/485 1 x USB-A Host Modbus 1 x USB-B Slave	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols	Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	275 x 211 x 44 ✂ 259 x 201	269
HMI-102U3SE [new]	Touch Screen 10.2" / 259 mm 16/9 1024 x 600 px 223.53 x 130.97 mm	1 x Ethernet + 1 x RS232 + 2 x RS485 1 x USB-A Host Modbus 1 x USB-C Slave Optional WiFi	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols VNC Server	Front IP65 / Rear IP20 Fanless -20/+70°C CE/FCC 11-28 VDC	274 x 211 x 41 ✂ 259 x 201	159
HM-156QS-G	Touch Screen 15.6" / 396 mm 16/9 1920 x 1080 px 345.35 × 194.26 mm	1 x Ethernet + 1 x RS232 + 2 x RS485 1 x USB-A Host Modbus 1 x USB-C Slave Optional WiFi	Modbus over USB, TCP & RS232/485 + A wide range of PLC protocols	Front IP65 / Rear IP20 Fanless -20/+55°C CE/FCC 22-28 VDC	395 x 257 x 31 ✂ 383 x 246	490

Accessories


Accessories				Excl.VAT	Add To Cart
CBL-CMD1	HMI Programming Cable USB-A ↔ USB-B	To Download HMI Project in HMI PC with HMI-Tool Software ↔ HMI USB-B Port (For HMI with Ethernet, this can be done via RJ45)	1500	5
CBL-SC1	HMI RS232 Cable Sub-D9-F RS232 ↔ 3 Bare Wires	To Link HMI to ACE/eACE PLC via RS232 HMI RS232 COM Port ↔ ACE, eACE or any device with RS232 Port Shielded cable. 3 wires TX, RX and GND [ ! ] Some ACE/eACE don't have an RS232 port	2500	6
USB-ACE-HMI	HMI-ACE USB Cable USB-A ↔ Amplifier ↔ Min-USB	To Link HMI to any ACE/eACE PLC via USB HMI USB-A Host Port ↔ ACE, eACE with Mini-USB Port Dynamic Amplifier. Shielded cable [ ! ] HM-035UE doesn't have USB-A Port	1800	7
DB9F	SUB-D9 Female Screw Connector RS232/RS485/RS422 Sold without cable	Connect to HMI Sub-D9 connector HMI RS232/485 COM Port ↔ Cable Screw Terminals : Pin 1 to 9 + GND Space-saving and low-profile	41	4

LAN/WAN/WIFI Mini Gateway

MODBUS-TCP Server
or
MQTT Client Publish & Subscribe

Adds Modbus-TCP or MQTT via WIFI/LAN/WAN to your ACE PLC

Powered by 8-35 VDC via DC/DC adapter included
DIN-Rail adapter with 3M double side adhesive included
30 cm Mini-USB cable included (ACE PLC <> ACE-GTW Gateway)


WIFI/LAN Gateway					Excl.VAT	Add To Cart
ACE-GTW-MB	Modbus Gateway Modbus-RTU Master Over USB to Modbus-TCP Server	Adds MODBUS-TCP via WIFI/LAN/WAN access to your ACE/eACE PLC with only IP configuration required Network configuration via embedded web pages Connected to the USB port of any ACE or to any RS485 device via USB-RS485-WE	1 x USB-A Host 1 x LAN Modbus-TCP Server 1 x WAN/LAN 1 x WIFI 2.4 GHz 802.11n MiMo AP & STA 1 x Micro-USB	58 x 58 x 25	39
ACE-GTW-MQTT	MQTT Gateway Modbus-RTU Master Over USB to MQTT Client	Adds an MQTT Client via WIFI/LAN/WAN to your ACE/eACE PLC Network configuration via embedded web pages Connected to the USB port of any ACE or to any RS485 device via USB-RS485-WE	1 x USB-A Host 1 x LAN MQTT Client 1 x WAN/LAN 1 x WIFI 2.4 GHz 802.11n MiMo AP & STA 1 x Micro-USB	58 x 58 x 25	49
USB-RS485-WE	USB to RS485 Serial Converter	Adds RS485 support to ACE-GTW Gateways Can also be used on PC (Windows, Mac, Linux) FTDI Chip A+ and B- LEDs for easy diagnostic	1 x USB-A 1 x RS485 A+ B- GND +5V R120 Ω	Cable lenght 1800	12

LAN/WAN/WIFI/4G/LTE-M/GPS/GNSS Mini Gateway

MQTT Client Publish & Subscribe ⇆ Modbus-RTU Master Smart Gateway
Adds MQTT and GPS/GNSS functions via 4G/LTE-M/WIFI/LAN/WAN to your ACE PLC or any RS485 Modbus-RTU device (via USB-RS485-WE)
Power supply from 9 to 28 VDC with included power cable

ace gtw 4g m1 mqtt modbus gateway all product page


ACE-GTW 4G/GPS					Excl.VAT	Add To Cart
ACE-GTW-4G-M1	MQTT Client ⇆ Modbus RTU Master & TCP Client Gateway GPRS/4G/LTE-M1 GPS/GNSS WIFI 2.4 GHz LAN + WAN USB Host	Add a smart MQTT Client to ACE PLC or to any Modbus TCP/RTU slave devices	Firmware designed in France Scalable & On-Demand Functionalities Setup via web pages Industrially proven 9-28 VDC input with locking connector	140 x 100 x 26	85
WDR-MKIT-GTW	Wall + DIN Rail Mounting Kit	For ACE-GTW-4G	Din-Rail: 3 Possible Positions Painted sheet metal	50 x 20	3
ANT-GPS-4G	4G/LTE + GPS/GNSS 2 in 1 Antenna IP67 Anti-Vandal 2 x SMB (no SMA) 700-2700 MHz 3 dBi	For ACE-GTW-4G with SMB connectors	3M double-sided adhesive + Nut for 12 mm hole Optional L-Shape Bracket	46 × 15 Cable lenght 2000	12
ANT-4G	4G/LTE Whip Antenna IP67 Screw-on SMB (no SMA) 700-2700 MHz 3 dBi	For ACE-GTW-4G with SMB connectors	Nut for 12 mm hole Optional L-Shape Bracket	30 × 300 Cable lenght 2000	5
ANT-WIFI	WiFi Antenna IP67 Anti-Vandal 1 x SMB (no SMA) 2400-2500 MHz 4 dBi	For ACE-GTW-4G with SMB connectors	3M double-sided adhesive + Nut for 12 mm hole Optional L-Shape Bracket	46 × 15 Cable lenght 2000	7
SMB-M-SMA-M	SMB Male to SMA Male Adapter	Required for Connecting our SMB antennas to Devices other than ours		20 x 10	2
L-BRACKET	L-Shaped Metal Bracket	For Screw-on Antennas. For Wall Mounting	Painted folded sheet metal	40 x (40 + 50) x 1.1 12 diameter hole	2
CBL-030USB	Mini-USB short cable	For Connect ACE-GTW-4G Gateway to ACE/eACE PLC		Cable lenght 3000	2
USB-RS485-WE	USB to RS485 Serial Converter FTDI Chip A+, B-, 5V, GND, 2 x 120 ohm pins	Add RS485 to all ACE-GTW Gateways or RS485 to any PC	Quality case Waterproof Moulded Unbreakable	Cable lenght 1800	12

Other accessories


Accessories				Excl.VAT	Add To Cart
STATUS	Stack-Light	Full color stacklight Signal Tower 85 db alarm Simple, Universal Wiring	68 x 40 x 150	99
PT100 to 0-10V Converters
TB03PT100-35 +0+400	PT100 to 0-10V Converter Terminal Board 3 inputs / 3 outputs PT100 inputs: +0 to +400 °C	Provides 3 * 0-10V analog outputs from 3 * PT100 analog inputs Integrated DIN rail adapter Power supply: 14-28 VDC	63.5 x 63.5 x 12.7	45
TB03PT100-35 -40+200	PT100 to 0-10V Converter Terminal Board 3 inputs / 3 outputs PT100 inputs: -40 to +200 °C
PWM to 0-10V Converters
TB03PWM010-35	PWM to 0-10V Converter Terminal Board 3 inputs / 3 outputs PWM period lenght: 1 kHz	Provides 3 * 0-10V analog outputs from 3 * PWM inputs Integrated DIN rail adapter Power supply: 14-28 VDC	63.5 x 63.5 x 12.7	39
PWM010	PWM to 0-10V Converter Terminal Board 1 input / 1 output PWM period lenght: 2 kHz	Provides 1 * 0-10V / 0-5V analog outputs from 1 * PWM input 5-24V Integrated DIN rail adapter Power supply: 16-30 VDC	55 x 50 x 33	14
RS232 to RS485 Converter
RS232RS485	RS232RS485 converter module RS232 cable : See CBL-CONV	Screw terminal block (RS485) Sub-D9 connector (RS232) RS232 cable : See CBL-CONV	55 x 35 x 18	6
CBL-CONV	RS232 cable ready to be wired for RS485 converter	Sub-D9 male RS232 bare wire end for RS232/485 converter to RS232 ACE connector	300	4
Light, temperature and humidity sensor
ACE-THL-MB	Light, temperature and humidity sensor IP65 Modbus RTU RS485	Temperature range -30 +80°C (+/-5% at 20°c) Light range 0-65535 lux +/- 7% Humidity range 0-100% +/- 3%	L 90 x H (58 + 41) x P (36 + 8) mm	34
Thermocouple Temperature sensor
U-TC-K-2	Temperature sensor K type Ungrounded 2 m	For Ace PLC with thermocouple inputs 16 bit Operating range: 0ºC to +500ºC Probe 5 x 30 mm Metal braided shield	5 x 30 2000	8
U-TC-K-5	Temperature sensor K type Ungrounded 5 m	For Ace PLC with thermocouple inputs 16 bit Operating range: 0ºC to +500ºC Probe 5 x 30 mm Metal braided shield	5 x 30 5000	12
TC-K-8	Temperature sensor K type Grounded 8 m	For Ace PLC with thermocouple inputs 16 bit Operating range: 0ºC to +500ºC Probe 5 x 30 mm Metal braided shield	5 x 30 8000	16
U-TC-K-8	Temperature sensor K type Ungrounded 8 m	For Ace PLC with thermocouple inputs 16 bit Operating range: 0ºC to +500ºC Probe 5 x 30 mm Metal braided shield	5 x 30 8000	16
AC Current transformer to 0-10V
CT010v10	CT010v10 Current transformer, folding mount Input 0-10 AC Output 0-10 VDC	Measurement of the electrical current in a wire Generates a 0-10 VDC proportional signal Self-powered 0-10V input impedance must be > 250 kΩ	23 x 26 x 50 Ø 10	14
CT025v10	CT025v10 Current transformer, folding mount Input 0-25 AC Output 0-10 VDC	Measurement of the electrical current in a wire Generates a 0-10 VDC proportional signal Self-powered 0-10V input impedance must be > 250 kΩ	23 x 26 x 50 Ø 10	14
CT050v10	CT050v10 Current transformer, folding mount Input 0-50 AC Output 0-10 VDC	Measurement of the electrical current in a wire Generates a 0-10 VDC proportional signal Self-powered 0-10V input impedance must be > 250 kΩ	23 x 26 x 50 Ø 10	14
CT100v10	CT0100v10 Current transformer, folding mount Input 0-100 AC Output 0-10 VDC	Measurement of the electrical current in a wire Generates a 0-10 VDC proportional signal Self-powered 0-10V input impedance must be > 250 kΩ	31 x 31 x 55 Ø 15	14

Power Supplies


			Excl.VAT	____________
HDR-30-24	24 VDC 1.5 A 85-264 VAC DIN Rail Power Supply	34 x 90 x 54.5	12
HDR-60-24	24 VDC 2.5 A 85-264 VAC DIN Rail Power Supply	52.5 x 90 x 54.5	24
LI100-20B24	24 VDC 4.2 A 85-264 VAC DIN Rail Power Supply	70 x 92 x 58	29
ACA-12V-1A-EU	12 VDC 1 A 100-240 VAC EU Wall Plug Power Supply	60 x 30 x 40	4
HDR-15-5	5 VDC 2.4 A 85-264 VAC DIN Rail Power Supply	54.5 x 9 x 17.5	12
400-503	8-35 VDC > 5 VDC 3 A DC-DC Regulator	472614 mm 600+600 mm	7

Spare or additional parts

Sometimes you need extra things or spare parts


SPARE OR ADDITIONAL PARTS	Designation	Price € ex VAT	____________
ALL THESE ACCESSORIES ARE SUPPLIED AS STANDARD WITH THE RESPECTIVE PRODUCTS
3M-DS-5	Double sided adhesive 3M For ACE PLCs 5 pieces	3
TPLUG-8	Set of 2 terminal plugs 8 positions For ACE PLCs Inputs/Outputs	6
TPLUG-4	Terminal plug 4 positions For ACE PLCs Inputs/Outputs	3
TPLUG-3	Terminal plug 3 positions For ACE PLCs RS232/485	3
TPLUG-2	Terminal plug 2 positions For ACE PLCs Power	2
HM-MOUTING-KIT	Fitting mount kit For 4.3" or 7.0" HMIs	6
